To enable approval of Dolby Atmos mixes with geographically separated collaborators, Source-Connect's Facility version supports streaming of Dolby Atmos mixes with up to 128 discrete channels with synced metaobjects. Source Elements has partnered with Dolby to implement a special feature in the Dolby Atmos Renderer (DAR) so we can synchronize metaobjects along with the audio.

With Source-Connect, there are always (at least) two parties involved in a connection:

1. The sending side is the local party, the "Send Renderer" in the UI.
2. The receiving side is the remote party, the "Receive Renderer" in the UI.

On the sending side, you would open the "Send Renderer" dropdown under General Settings, and select the IP address of your renderer. On the receiving side, you would open the "Receive Renderer" under General Settings and select the IP address of your renderer.

You may have multiple receivers, but only one sender.

The most common scenario is that the playback engine of your DAW (Pro Tools, for example) is "Dolby Audio Bridge" driver. This driver is also the audio input device in the local renderer's side so that data is sent from.

Requirements

On the sending side, you will need to connect to the Dolby Atmos Renderer and request that any Dolby Atmos-relevant data is communicated to Source-Connect Facility using the Atmos I/O settings.

You will need a Pro Tools setup with audio signals and the corresponding Dolby or Avid panning plugins to send panning metadata real-time to your Renderer that will be transmitted to the remote party via Source-Connect.

On the receiving side, you will need to connect to the Dolby Atmos Renderer and send any data that comes from the sending side.

On the sending and receiving sides, you will need an Ethernet connection to an internet connection capable of sending/receiving at least 5MB of network data without packet loss.

What you will need

1. You will need a Dolby-Renderer-enabled version of Source-Connect 4 and a Source-Connect Facility subscription. You can get a free trial via the "FREE TRIALS" tab in the Products & Downloads page, or purchase a Source-Connect Facility subscription or buy-in license on the Source Elements store.
2. You will need a Dolby Atmos Renderer application version 5.3.1 or higher. You can get a free trial via the Dolby Customer portal or purchase a license from them. This requires an iLok account.
3. The sender will need an Atmos-compatible DAW to send audio and metaobjects to the Dolby Audio Renderer.

This page is a quick-start guide for macOS. You can find Windows support and the full user guide here.

Requirements

• You and your connection partner have the external Dolby Atmos Renderer.
• Your DAW playback engine is set to the Dolby Audio Bridge.

1. Installation

Download and install Source-Connect 4.1 Facility x Dolby Atmos: https://dashboard.source-elements.com/products/downloads/source-connect

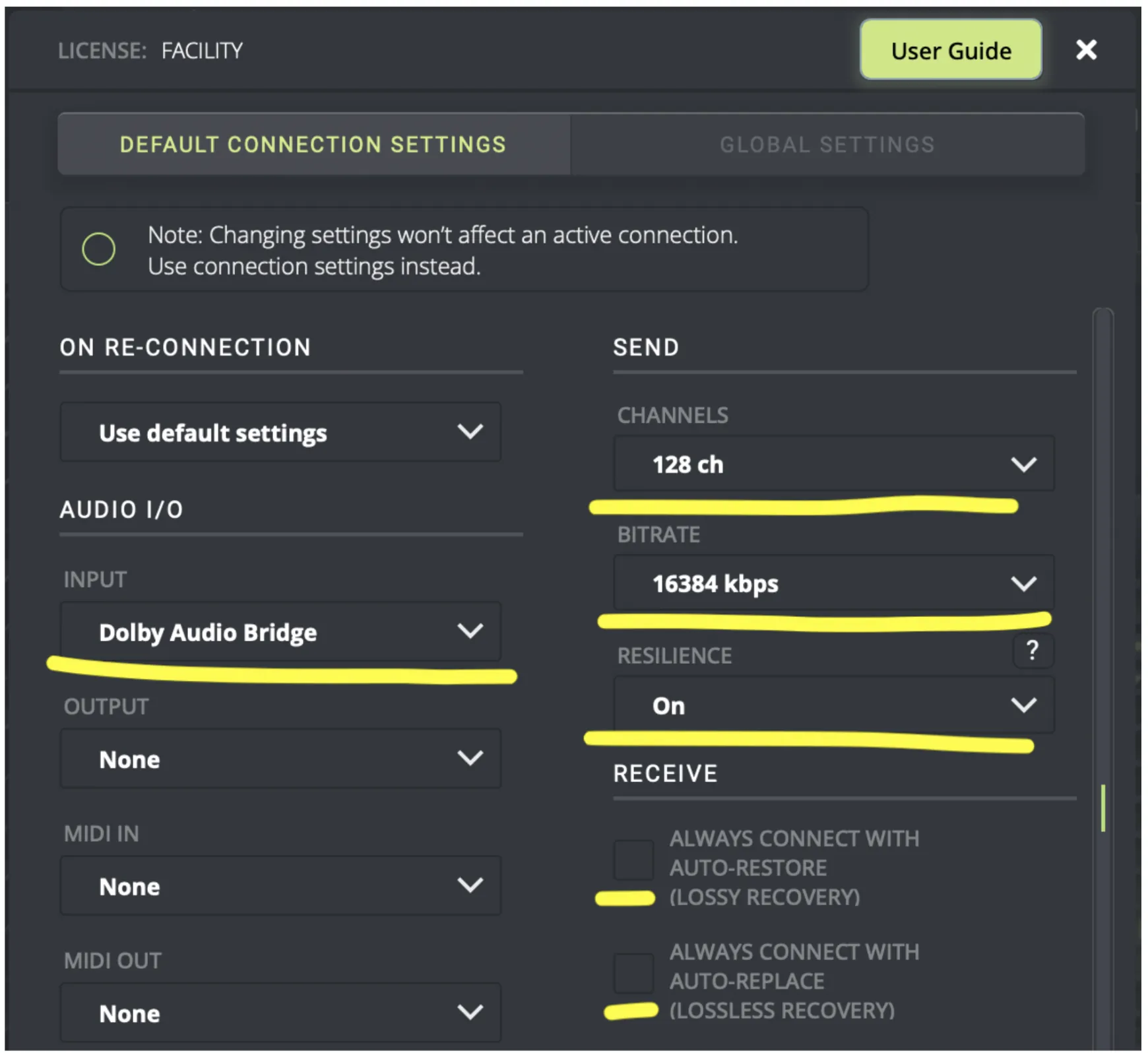

2. Set Send settings and input device

• Choose the Dolby Audio Bridge as the Input device.
• Set the highest channels you will send e.g 128.
• Set the bitrate higher or lower depending on your bandwidth: default is recommended.
• Leave Resilience to On unless you have a dedicated network between facilities.
• Disable Restore/Replace.

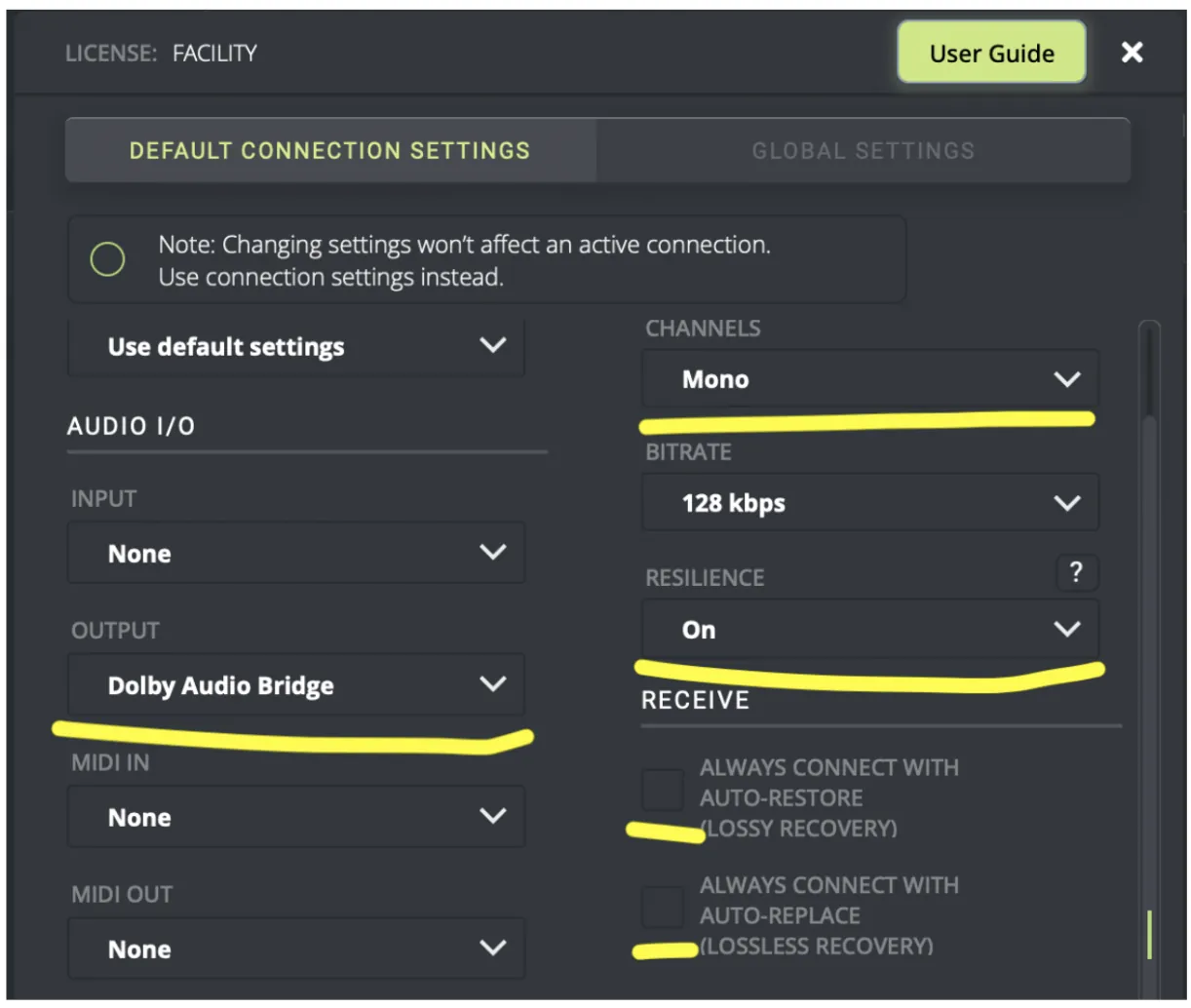

3. Set Receive settings and output device

• Choose the Dolby Audio Bridge as the Output device.
• Set the lowest channels you will send e.g mono. You may not be using this for communication.
• Set the bitrate higher or lower depending on your bandwidth: default is recommended.
• Leave Resilience to On unless you have a dedicated network between facilities.
• Disable Restore/Replace.

4. Select the Dolby Atmos Renderer

You MUST take this step before connecting.

Launch the Dolby Atmos Renderer so you will see it in the dropdown under the Dolby Atmos settings in Source-Connect: it will look on the local computer and WAN so if you have multiple Renderers available be sure to select the right one for your session.

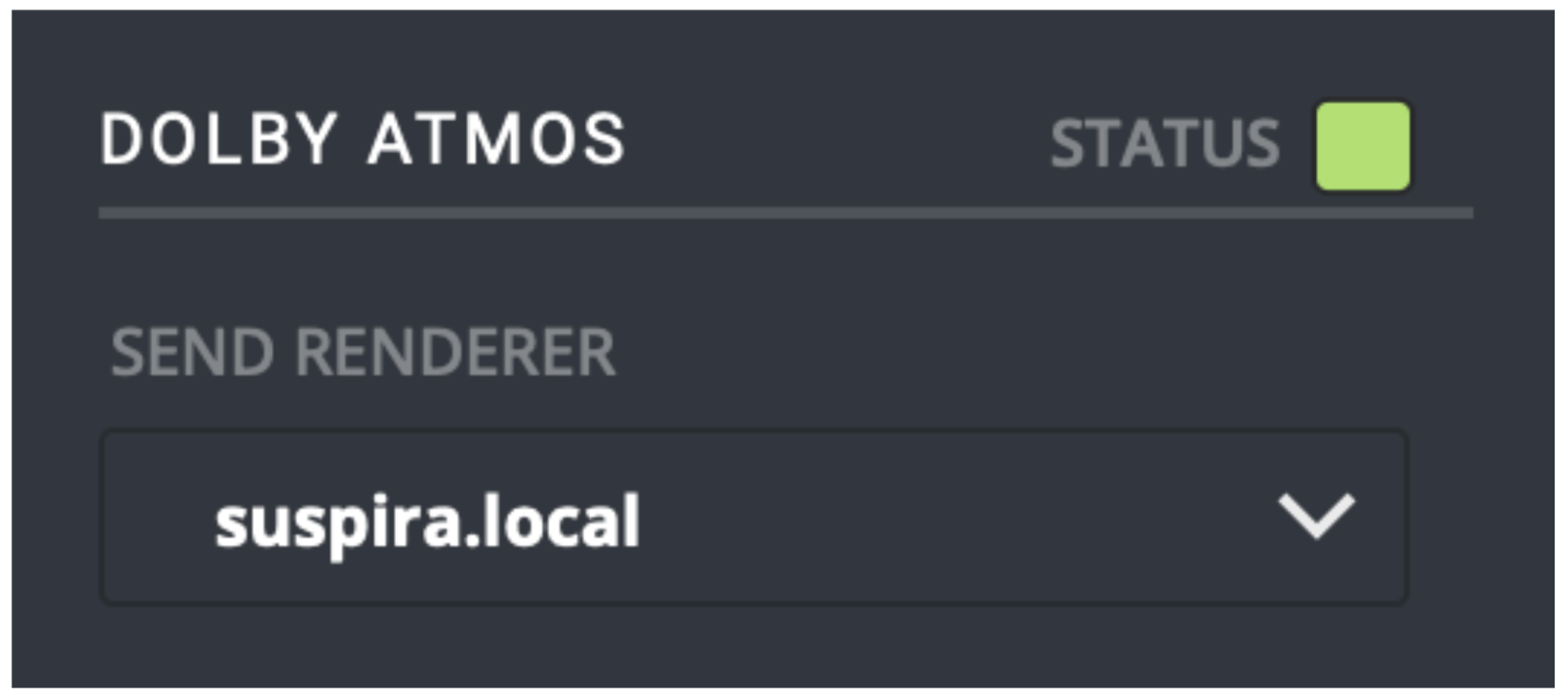

The send side selects for the Send Renderer:

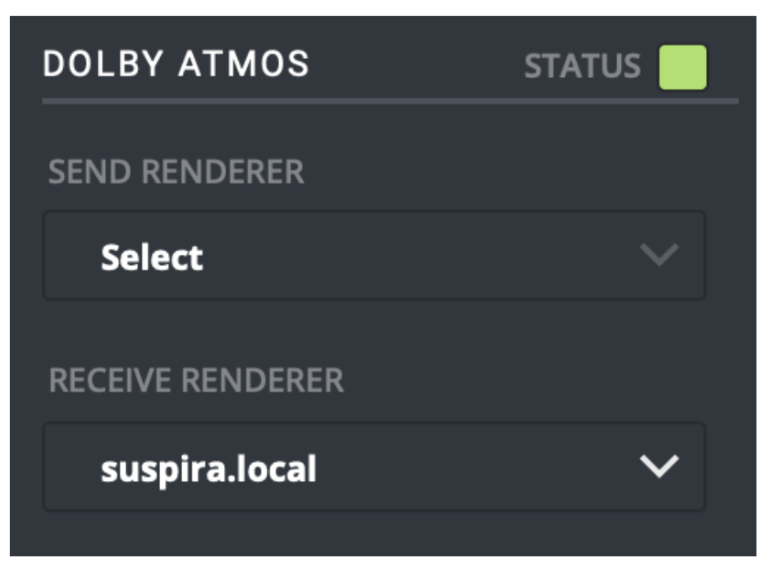

The receive side selects for the Receive Renderer:

5. Connecting

Click on the user you want to connect to. We strongly recommend that you disable Restore/Replace to save disk space while testing (it’s only needed for recording, you can permanently disable it in Global Settings)

6. Verifying that the Dolby Renderer is listening

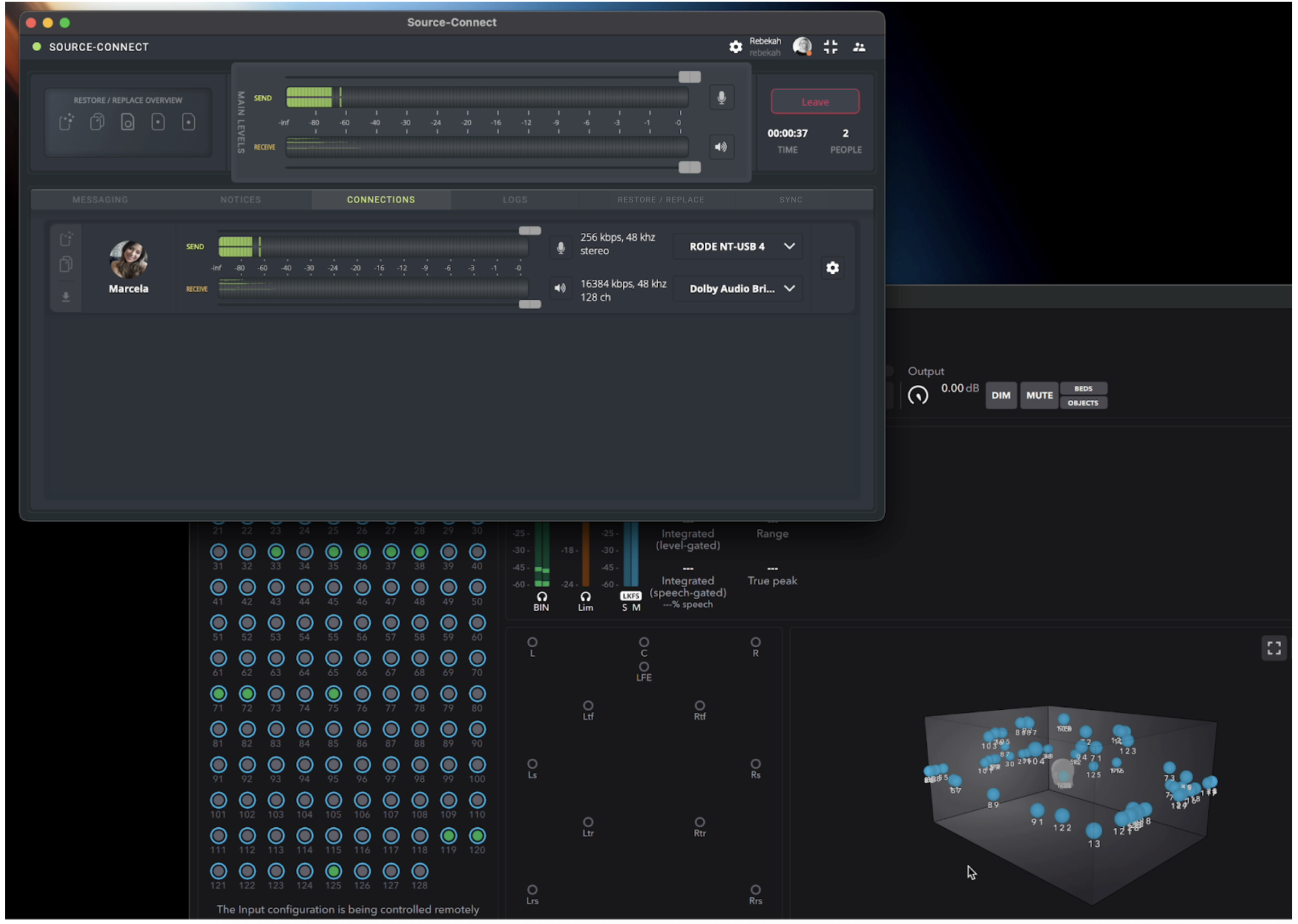

Once you are connected, you can verify that the Dolby Atmos Renderer is talking to Source-Connect as the status indicator will turn green:

Any audio you are now sending will be received by your connection partner, along with the metadata.

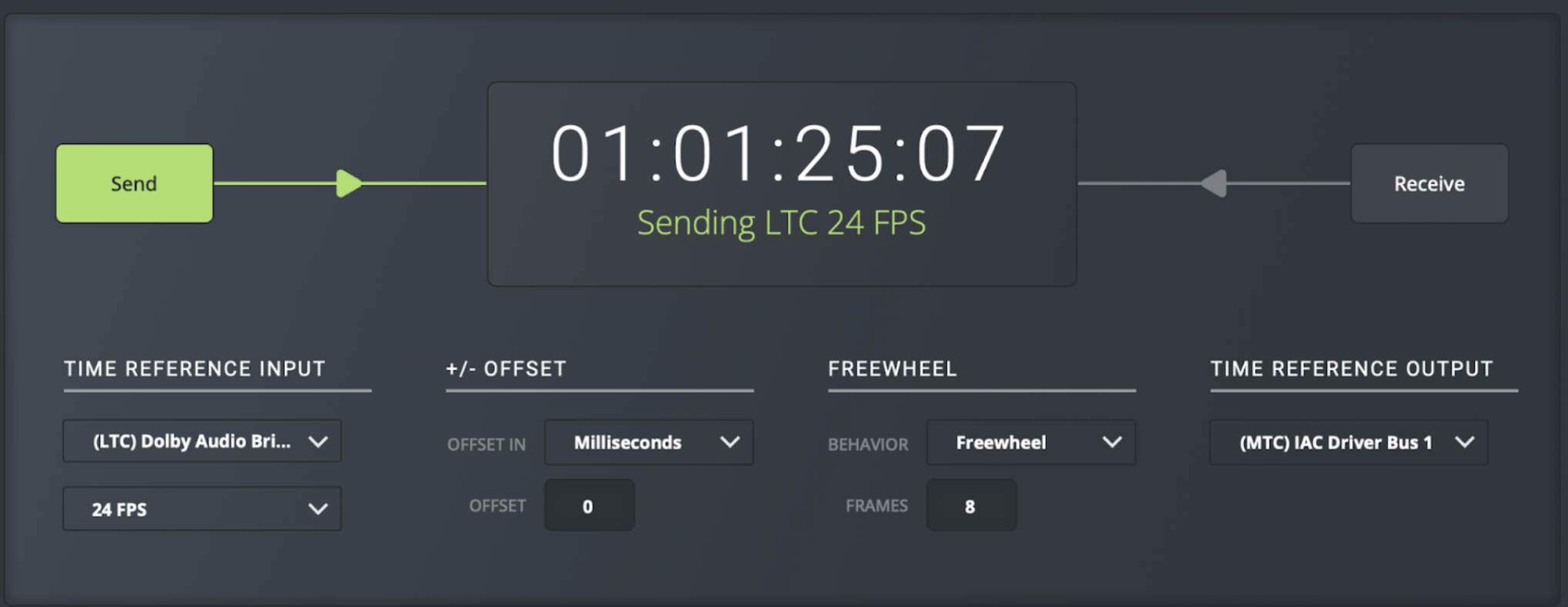

7. Using LTC correctly: via the Remote Transport Sync feature

We do not recommend sending LTC as an audio channel, for example do not use channel 128 for LTC. The correct way to use LTC is via the RTS feature on the Sync tab: this activates our special stability algorithms and will give a much better synchronization experience.

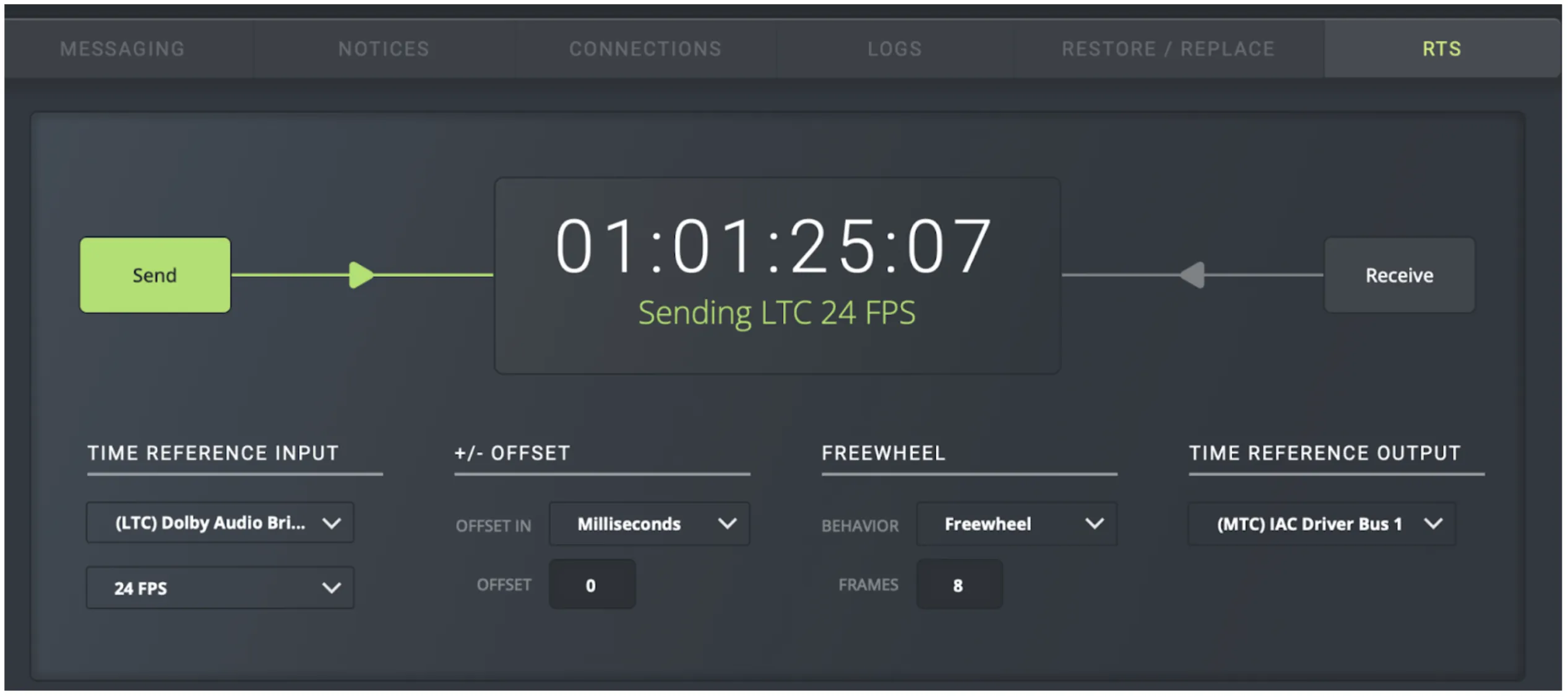

Typical RTS steps:

1. Send the output of the Dolby LTC Generator plugin to Dolby Audio Bridge channel 129 or any channel or audio device not used. For example, you can use Source-Nexus I/O to get the Dolby LTC signal to the right Dolby Audio Bridge channel.
2. In Source-Connect, select that LTC audio channel in the Time Reference Input->LTC menu.
3. When you hit play in your DAW, you will see you are sending LTC at the selected frame-rate.
4. The remote side will do the opposite and select their Time Reference Output (can be LTC or MTC, depending on their capabilities).

To receive, it depends on the system capabilities on the Receiving. See the documentation here about using LTC or MTC as needed:

• MTC: https://support.source-elements.com/source-connect-4-hub/how-to-configure-source-connect-4-to-receive-rts-via-mtc-and-your-daw-to-receive-mtc
• LTC: https://support.source-elements.com/source-connect-4-hub/how-to-configure-source-connect-studiofacility-to-receive-rts-via-ltc-and-pro-tools-to-receive-ltc

The following is an example how to configure Source-Connect Facility with the Dolby Audio Renderer and the Pro Tools DAW. Your setup may differ, contact us with any questions.

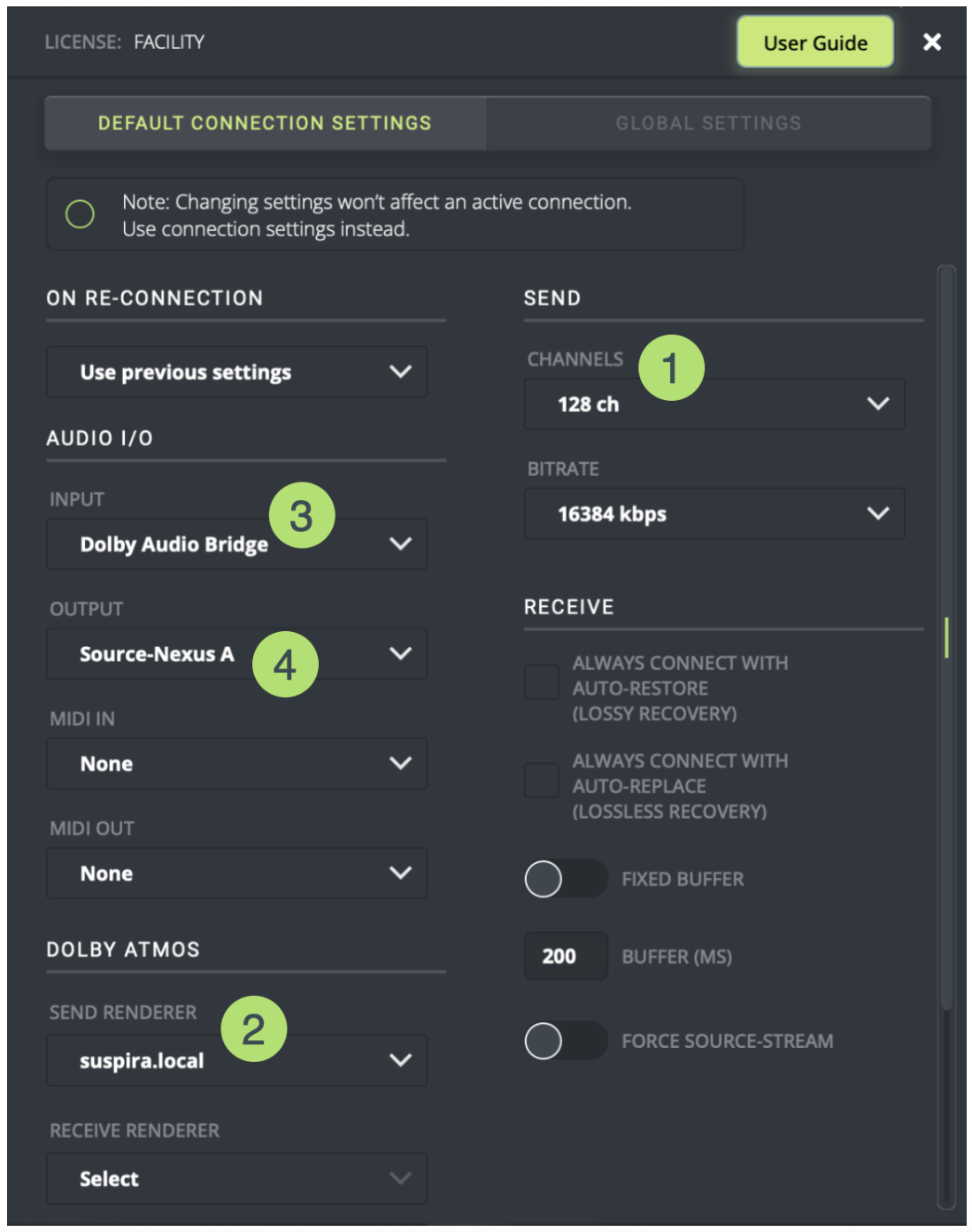

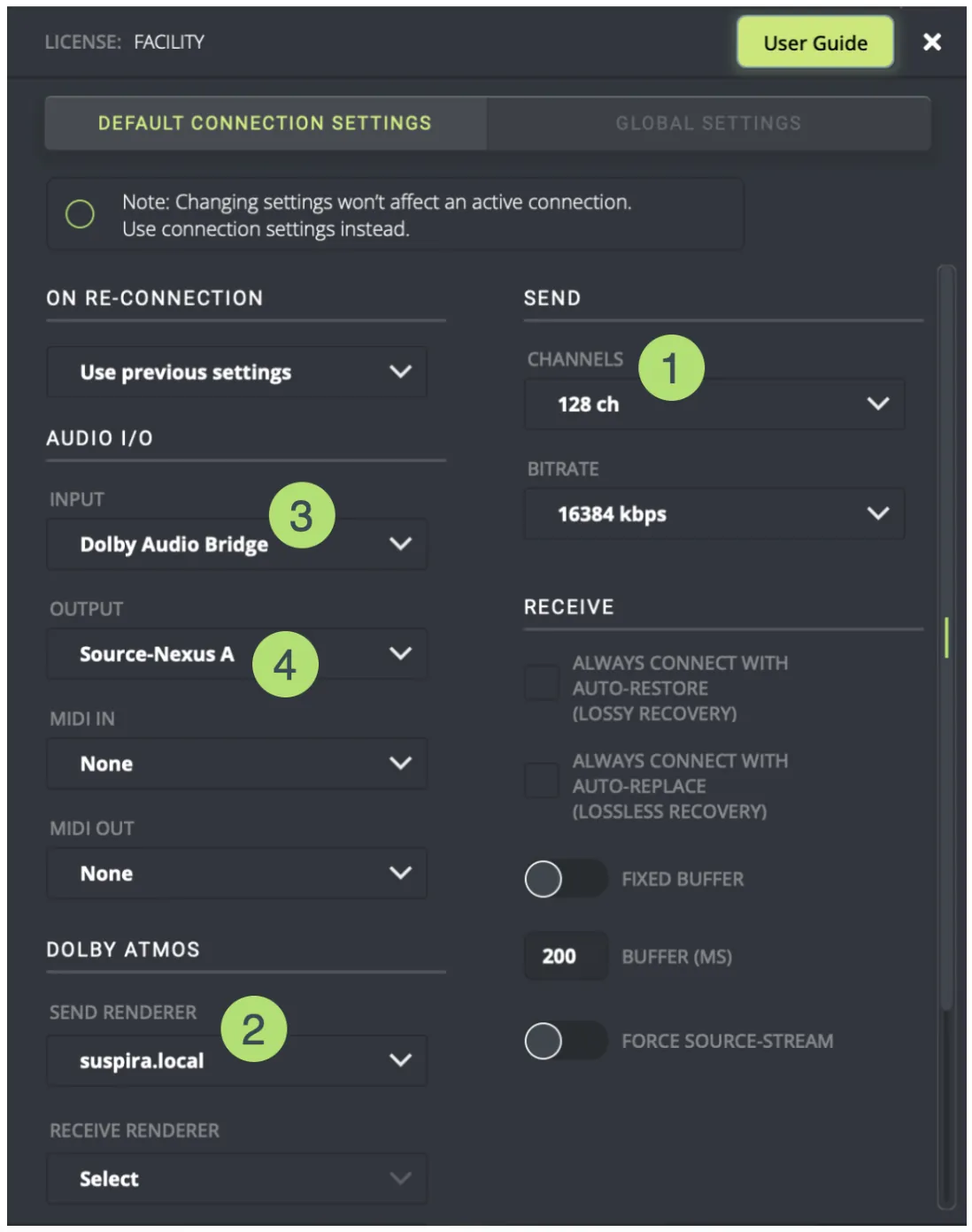

1. Open the Source-Connect 4 settings panel and adjust the following settings:
1. In the SEND section, select the appropriate number of channels for the connections. With a Dolby Atmos setup, you want to select 128 channels.
2. Under DOLBY ATMOS, open the SEND RENDERER dropdown and select your Dolby Atmos renderer from the available options. Make sure you select the correct channel range for the renderer.
3. In the AUDIO I/O dropdown, select the virtual Dolby Audio Bridge device as your input (inputs 1 – 128).
4. Select the output you want to have.

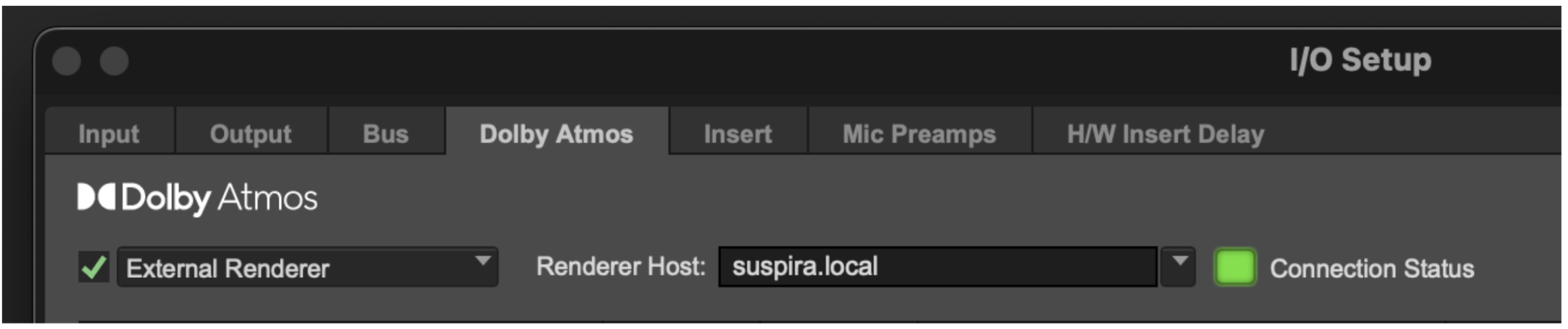

2. Set your Dolby Audio Renderer host as your External Renderer under I/O Setup in Pro Tools:

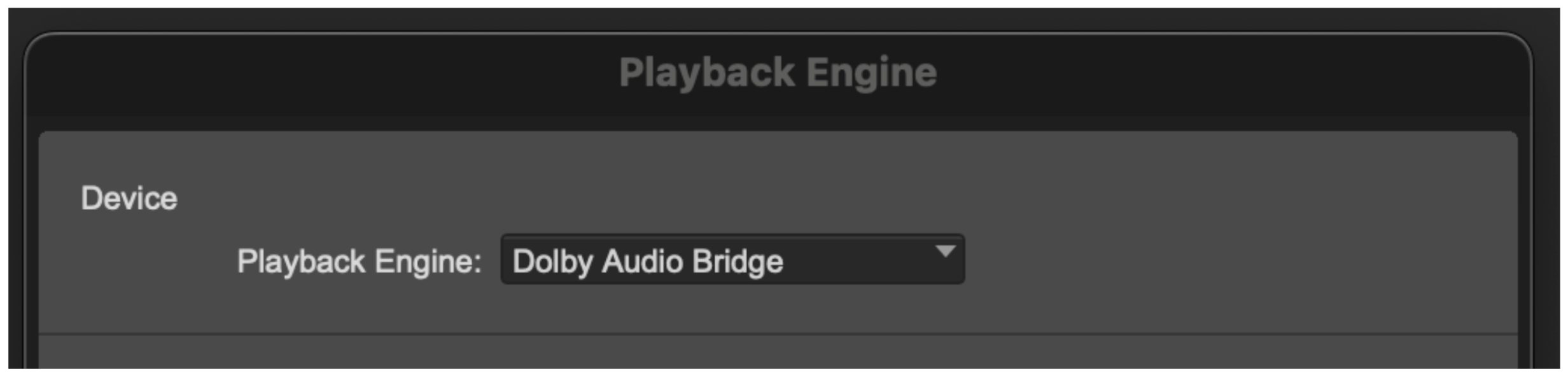

3. Set the Dolby Audio Bridge device as your Playback Engine device in Pro Tools:

4. In the Dolby Audio Renderer settings, set Dolby Audio Bridge as your Audio Input Device.

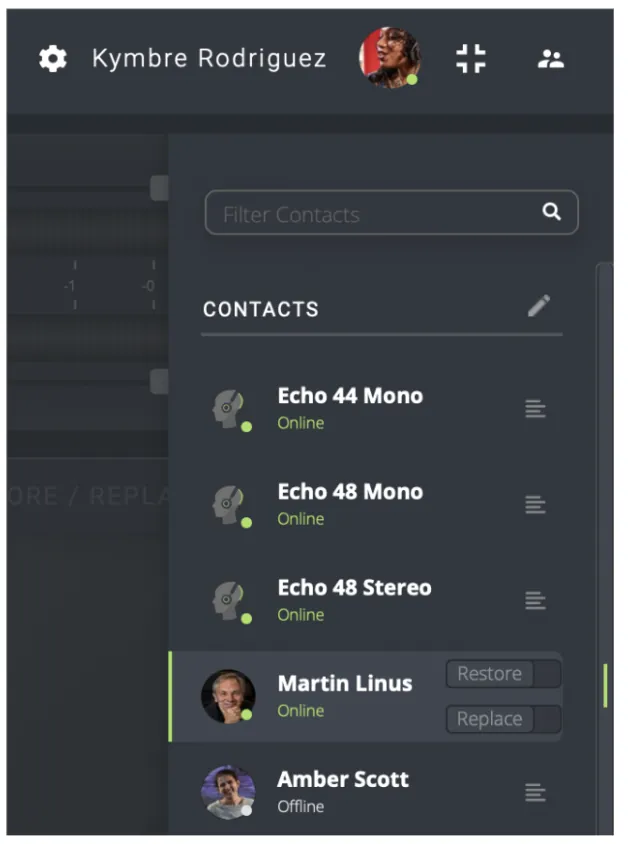

5. Then, find your connection partner in the CONTACTS panel and start your session.
6. Verify that the Dolby Atmos Renderer is listening:

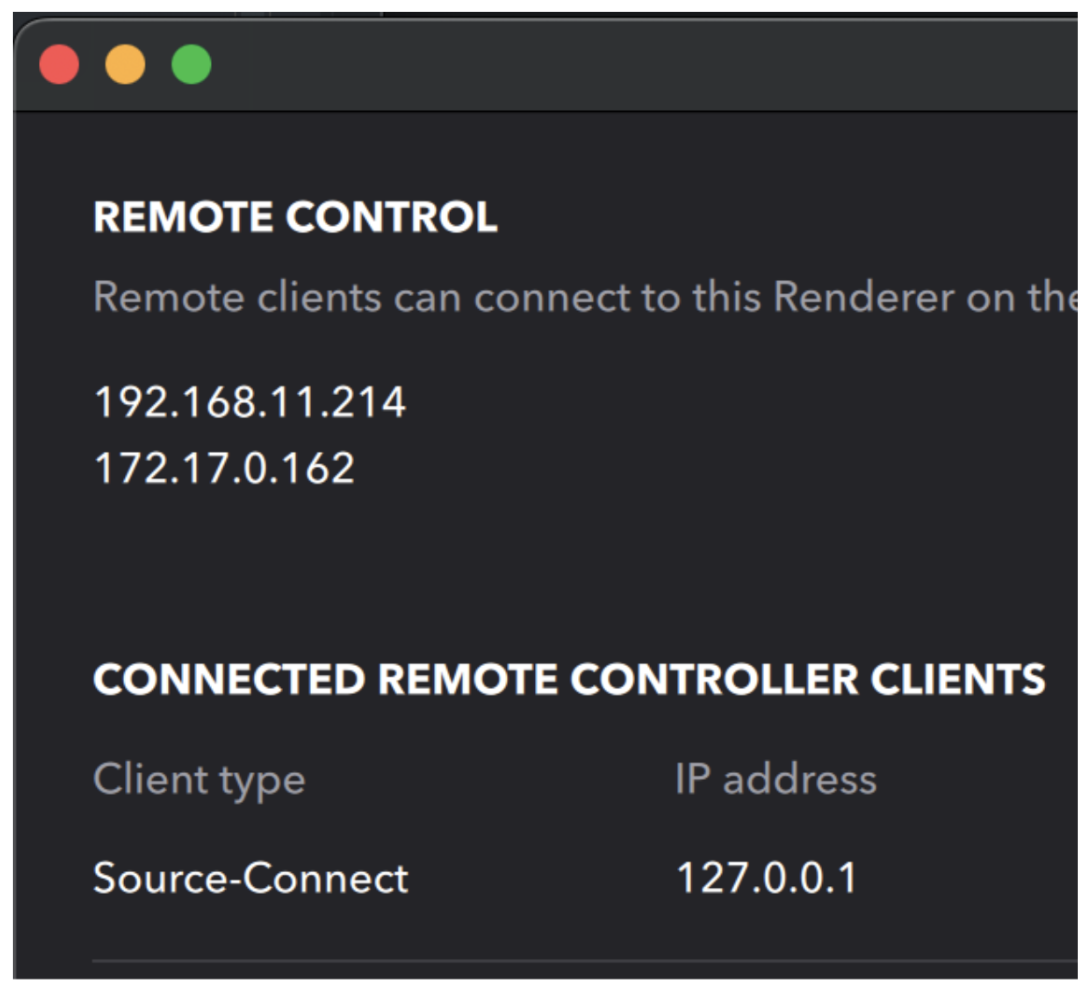

1. In the Dolby Renderer, go to Setup -> Remote clients. Only once you are connected on a Source-Connect session, with the Dolby Atmos Renderer properly selected in your Global Settings BEFORE you connect, will you see Source-Connect listed under the CONNECTED REMOTE CONTROLLER CLIENTS:

2. You will also see that Source-Connect is connected to the Dolby Atmos Renderer via Default Connection Settings.

The following is an example of how to configure Source-Connect Facility to forward audio and metaobjects to the Dolby Audio Renderer. A DAW is not needed unless you are chasing LTC. Your setup may differ, contact us with any questions.

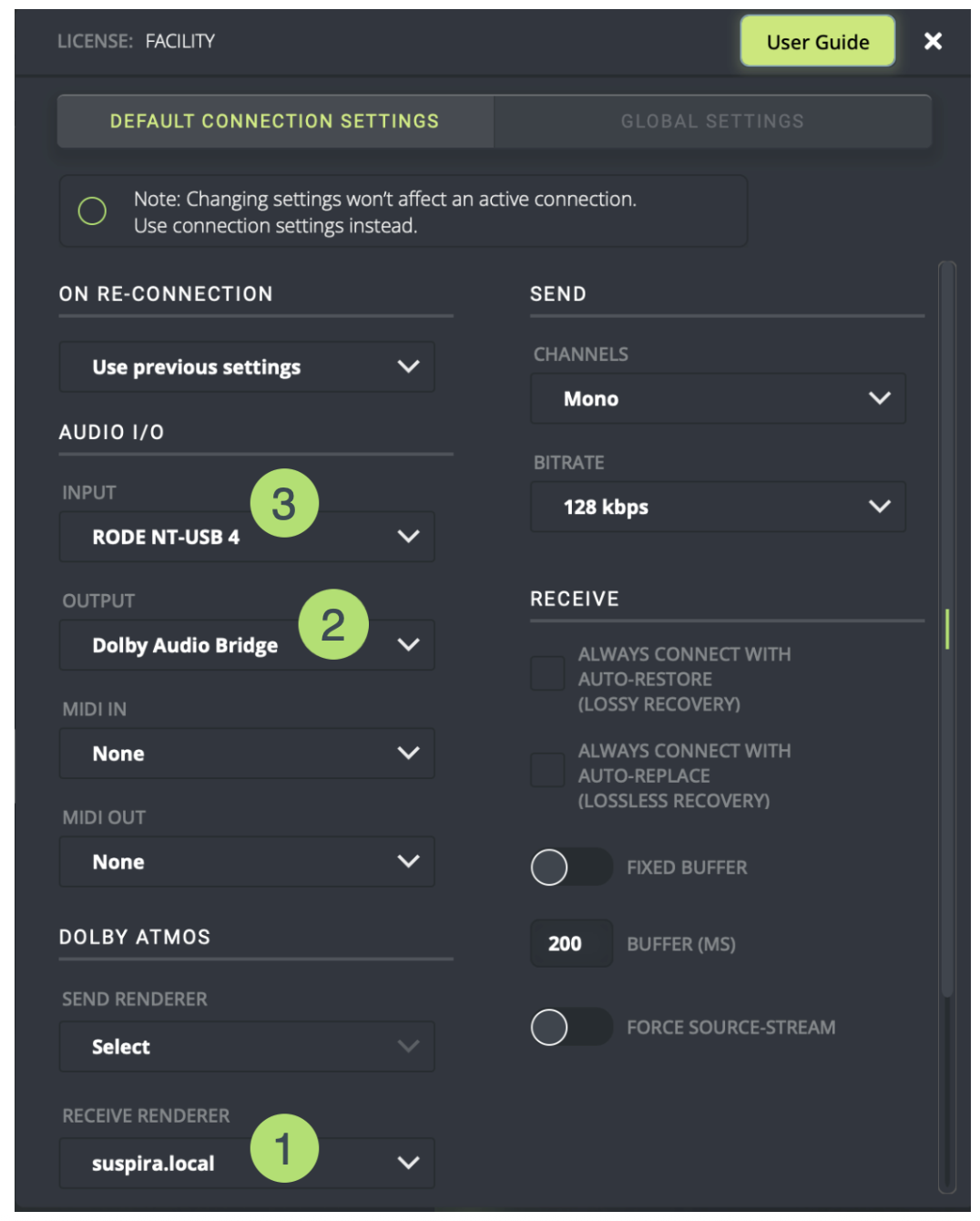

1. Configure Source-Connect as follows:
1. Under DOLBY ATMOS, open the RECEIVE RENDERER dropdown and select your Dolby Atmos renderer from the available options.
2. In the AUDIO I/O dropdown, select the virtual Dolby Audio Bridge device as your output (output 1 – it will automatically expand to 128 channels once you are connected).
3. Select the microphone input you want to have.
4. Only send mono or stereo channels - do not set 128 channels as your return or you will use bandwidth unnecessarily.

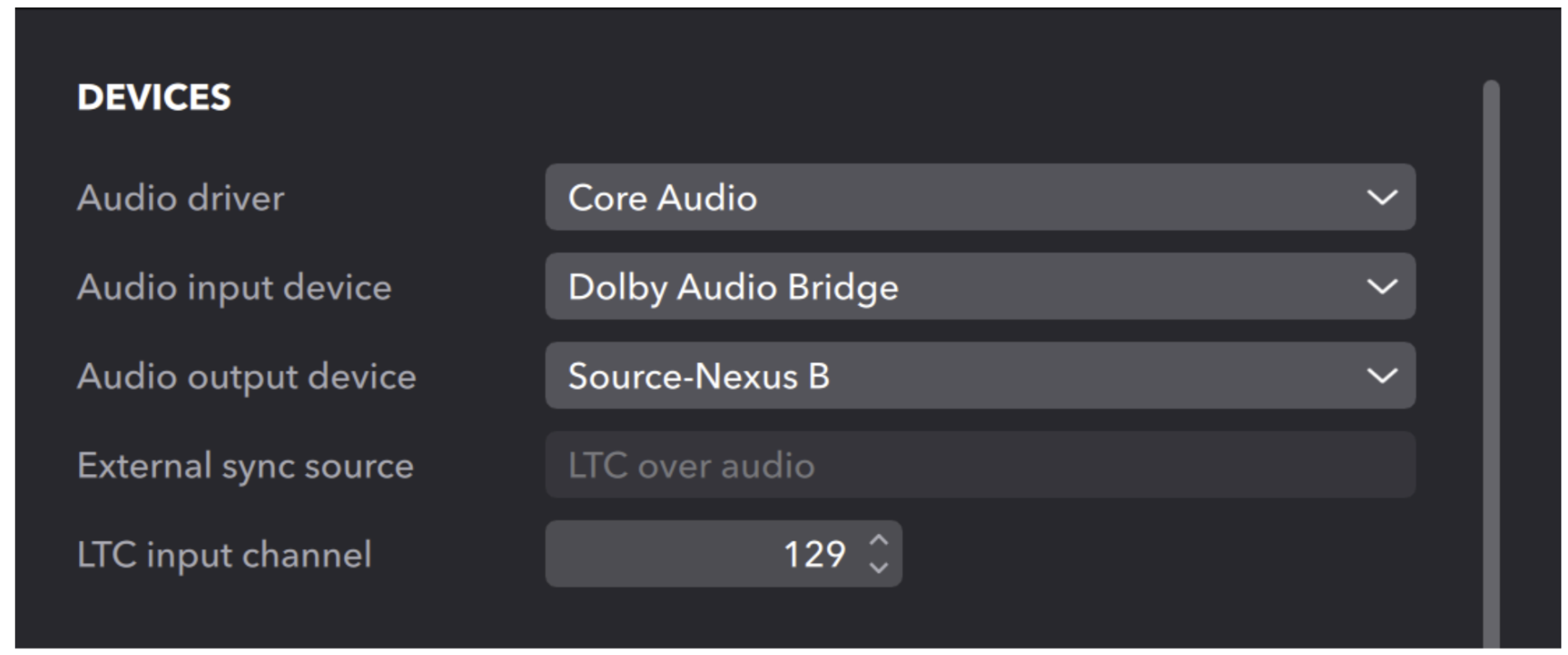

2. In the Dolby Audio Renderer settings, set Dolby Audio Bridge as your Audio Input Device

3. Once you are connected on Source-Connect, and the above is correctly configured, you can verify it is connected:

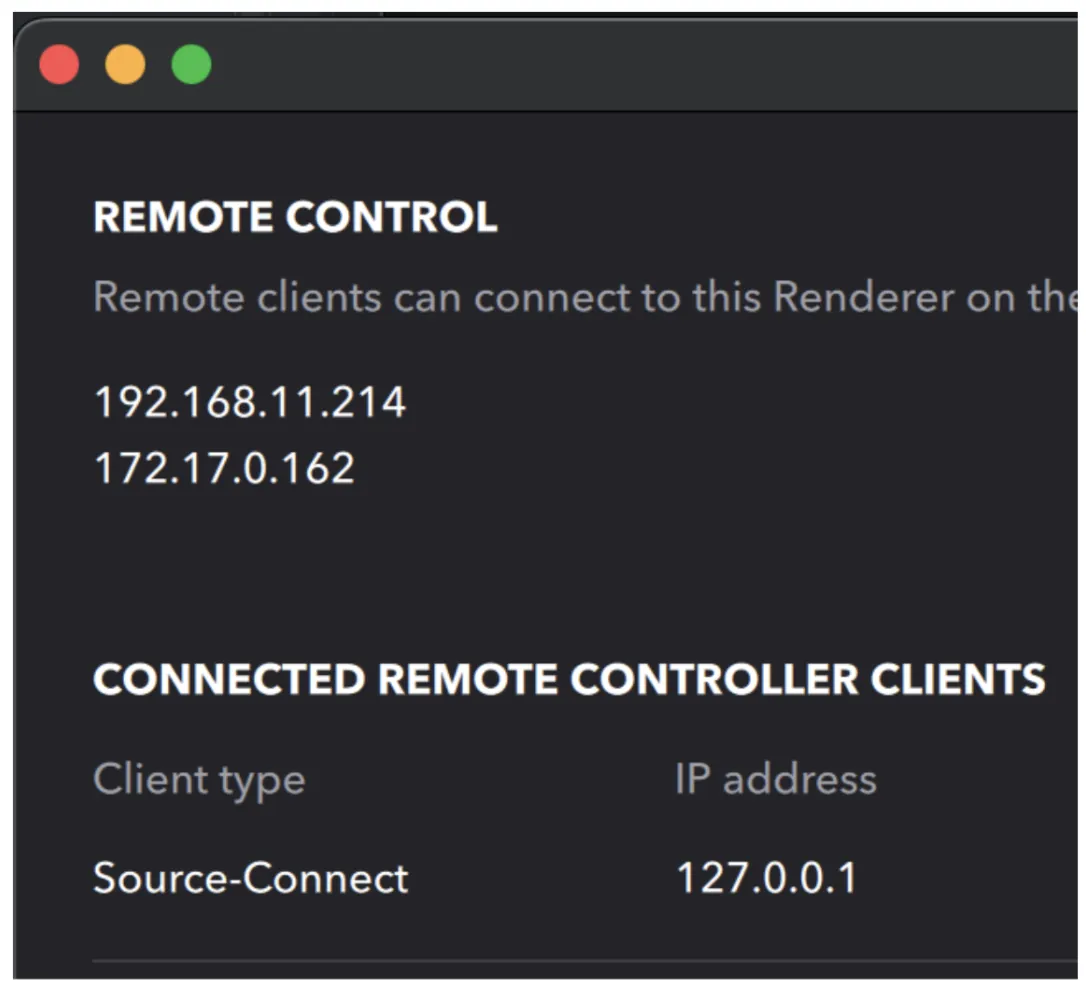

1. Confirm via the Dolby Audio Renderer under the Setup->Remote Clients menu.

2. Confirm via Source-Connect under Default Connection Settings.

4. When the SENDER starts sending audio, and their side is properly connected to their Dolby Atmos Renderer, you will receive all audio and metaobjects.

We do not recommend sending LTC as an audio channel - for example, do not set the connection to use 128 channels and use channel 128 for LTC. The correct way to use LTC is via the SYNC feature: this activates our special stability algorithms and will give a much better synchronization experience.

If you will be sending timecode in your session via MTC, you will need to configure Source-Connect for it as well. You can find very detailed step-by-step guides on how to configure SYNC for MTC here.

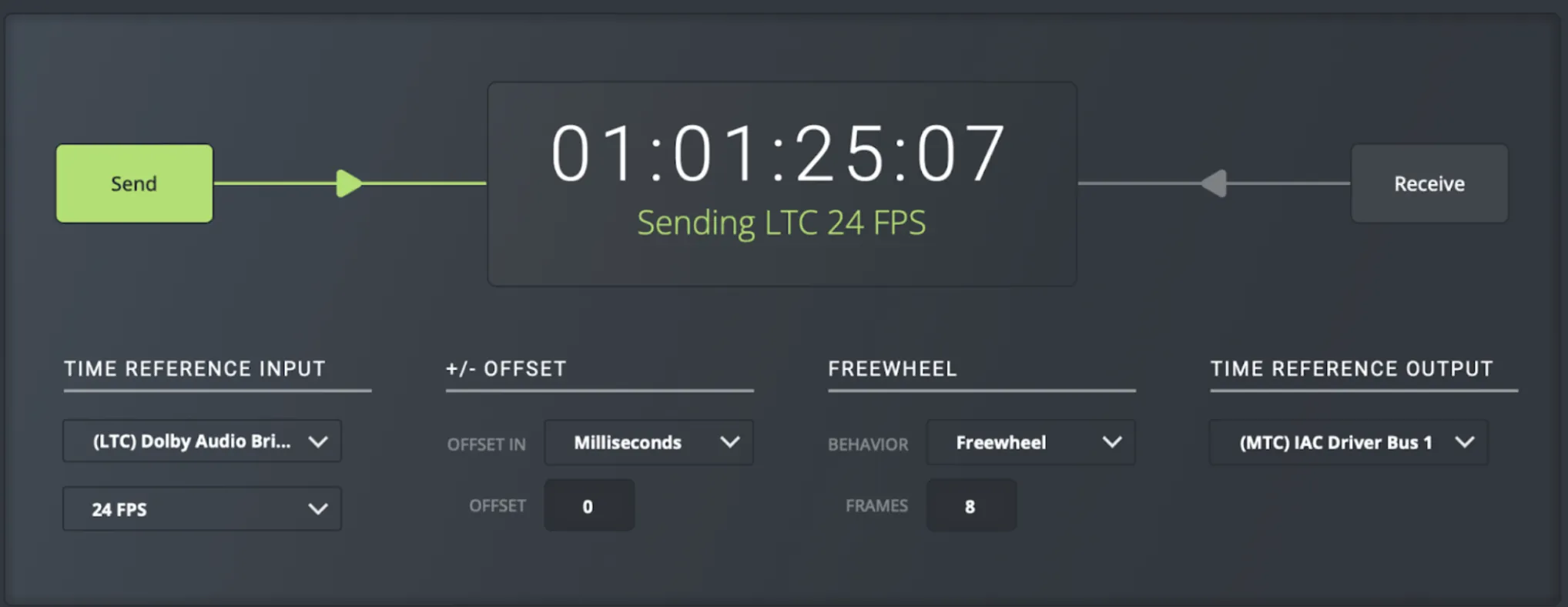

Typical SYNC steps

1. Make sure you are not sending more than 128 channels in Source-Connect.
2. Send the output of the Dolby LTC Generator plugin to Dolby Audio Bridge channel 128 or any channel or audio device that is not being not used. For example, you can use Source-Nexus I/O to get the Dolby LTC signal to the right Dolby Audio Bridge channel.
3. In Source-Connect, select that LTC audio channel in the Time Reference Input -> LTC menu
4. When you hit play in your DAW, you will see that you are sending LTC at the selected frame-rate.
5. The remote side will do the opposite and select their Time Reference Output (can be LTC or MTC, depending on their capabilities).

You can use the Source-Nexus I/O plugin to send audio from Pro Tools if needed, using this template: http://downloads.source-elements.com/SC4/Dolby/Atmos%20Mix%20Template.ptx.zip

Here's how the attached template works:

1. Sends audio to two 7th order ambisonics tracks.
2. Source-Nexus I/O sends the first 1-64 outputs to Dolby Audio Bridge and the second 5-128 outputs to Dolby Audio Bridge.
3. Select Dolby Audio Bridge as the Source-Connect input device.

As of version 4.1.0, Source-Connect 4 Facility introduced an integration with the Dolby Atmos Renderer to enable approval of Dolby Atmos mixes with geographically separated collaborators with up to 128 discrete channels with synced metadata for the objects spatial positions.

Windows users can use a multi-channel-capable ASIO interface and make use of Source-Connect 4’s Sync/RTS feature in order to achieve the same results. This step-by-step guide will use VB-Audio Matrix guide to send out LTC.

You will need a Source-Connect 4.1 version compatible with ASIO, contact [email protected] for early access.

Requirements

• A Source-Connect 4 Facility license and the application installed on the Windows machine.
• A DAW of your choice - which will support you in generating and/or receiving LTC or MTC. For the purpose of this tutorial, we will use Pro Tools.
• The external Dolby Audio Renderer application installed and a license for it. This could be installed on another computer in the same network as your Source-Connect and DAW application.
• VB-Audio Matrix (VB-Matrix) or other method to route audio from Pro Tools to Source-Connect and the Dolby Audio Renderer

Source-Connect 4, LTC and MTC

As mentioned above, Windows users can route a regular audio track to a dedicated channel and read it in Source-Connect 4 using the SYNC feature with LTC. You can find detailed information about RTS, LTC and MTC within the context of Source-Connect 4 in this article, along with a list of tutorials on how to get a basic RTS setup ready.

Step 1: Creating your ASIO drivers

1. First, create a 512-channel ASIO virtual driver and name it VASIO512. This is just a reference name, but it will be used throughout the guide. This channel will be used for Source-Connect 4’s Dolby Atmos integration.
2. (Optional, but recommended) Create two 256-channel ASIO drivers (name them VASIO256A or VASIO256B respectively), allowing 1:1 matrix routing between Pro Tools and Source-Connect.

Step 2: Setting your Dolby Atmos device on Source-Connect 4

1. In Source-Connect 4, click the gears icon to access the Settings menu.
2. In Default Connection Settings, make sure to set the “Send Renderer” or “Receive Renderer” to the ASIO device you created.

Step 3: Audio Routing in Pro Tools

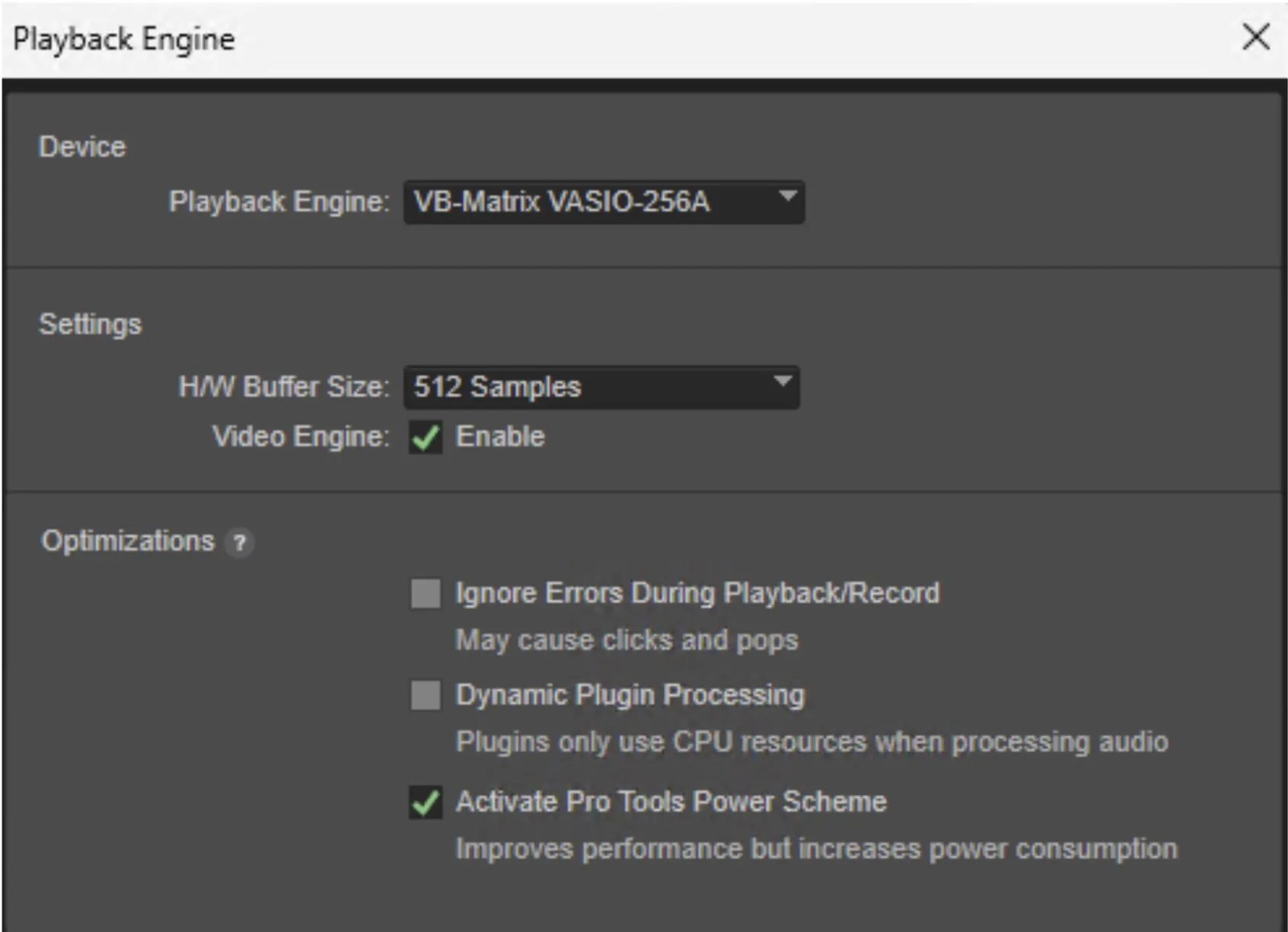

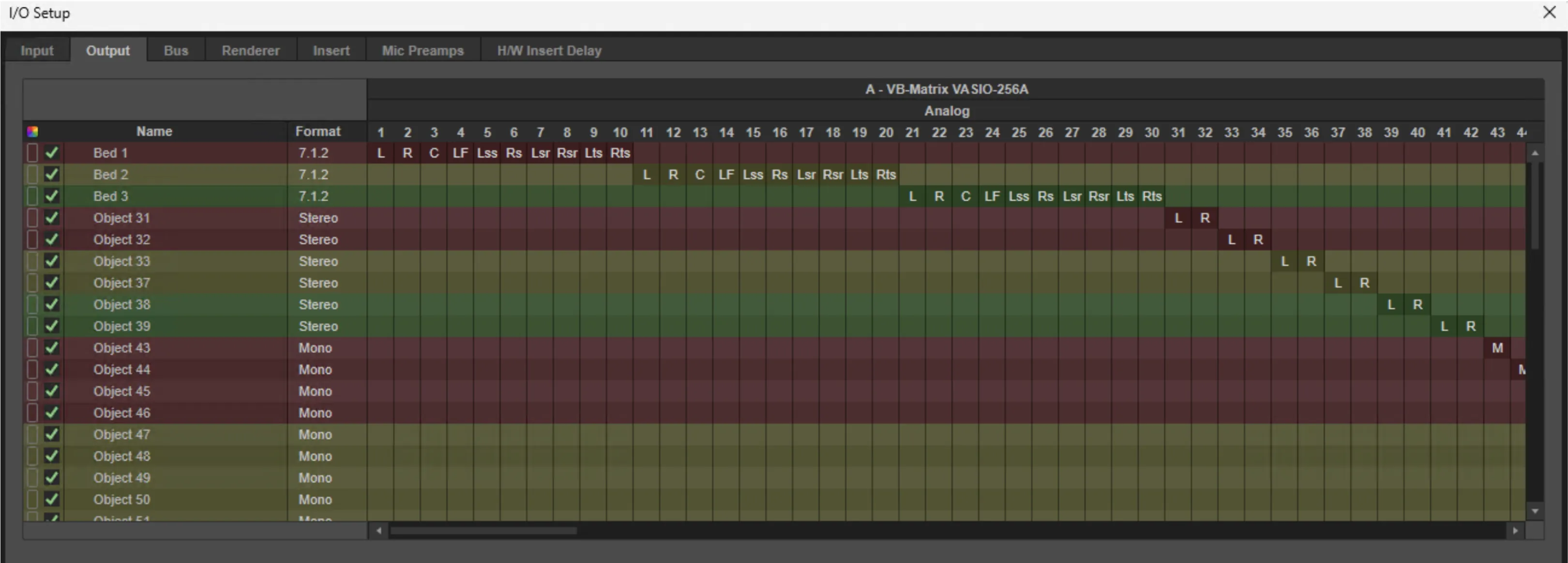

1. In the Pro Tools output to VASIO512.This will send all 128 channels to Source-Connect 4.

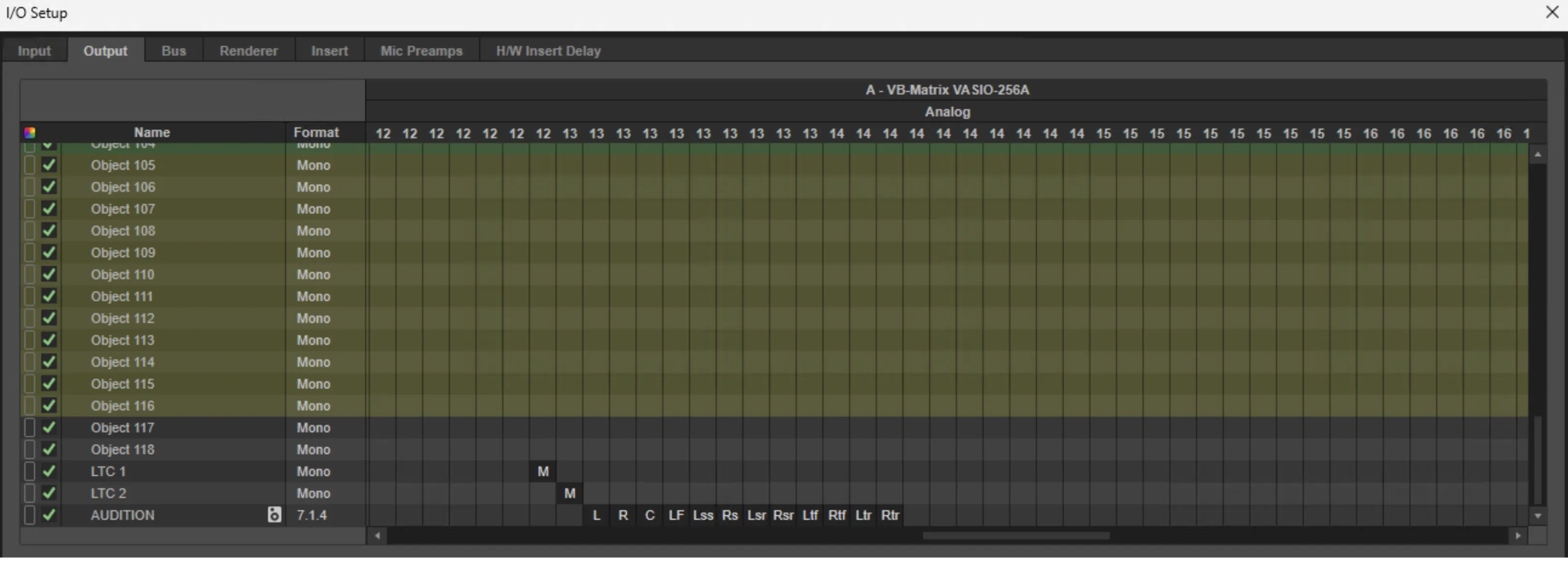

2. Route an LTC track in Pro Tools to Dolby Atmos Renderer input 129 and to VASIO512 channel 129. This will ensure that Source-Connect reads LTC from channel 129 in the SYNC tab.

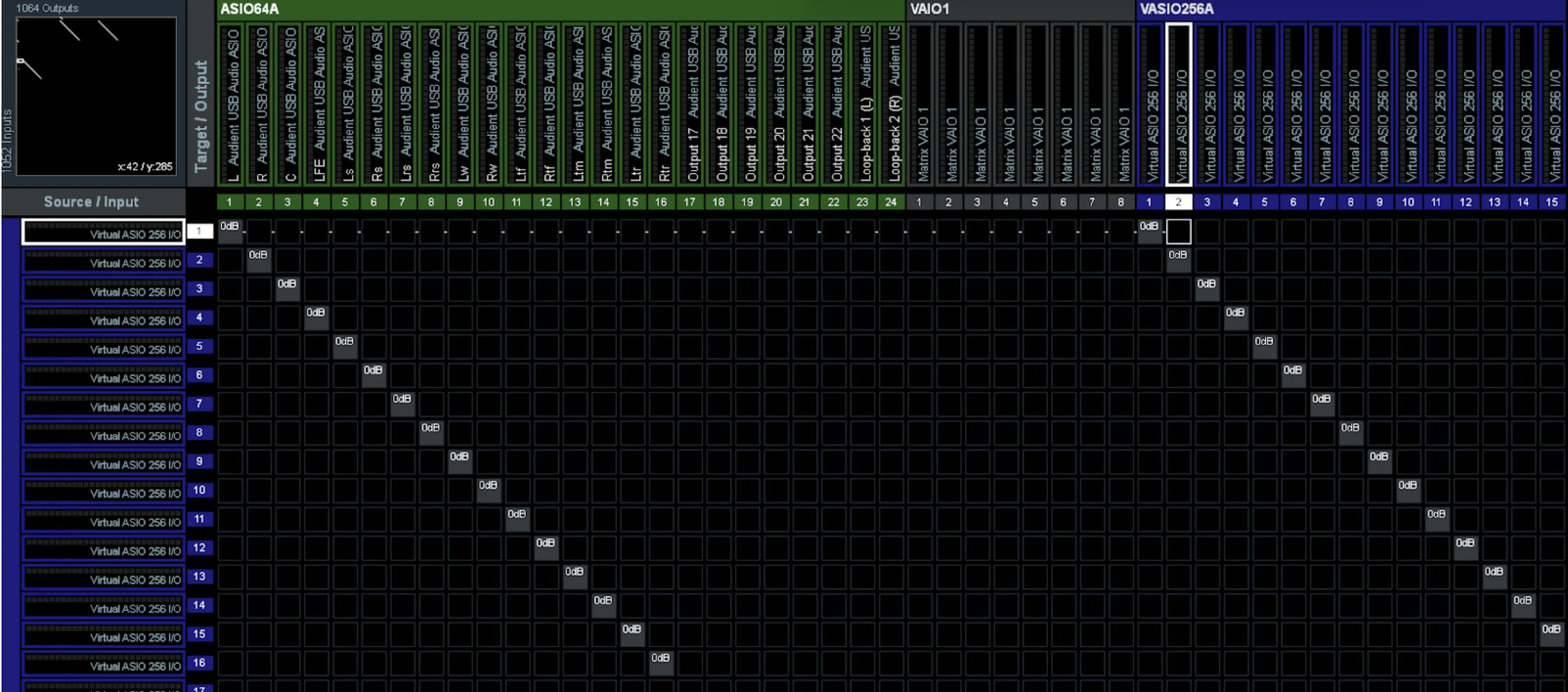

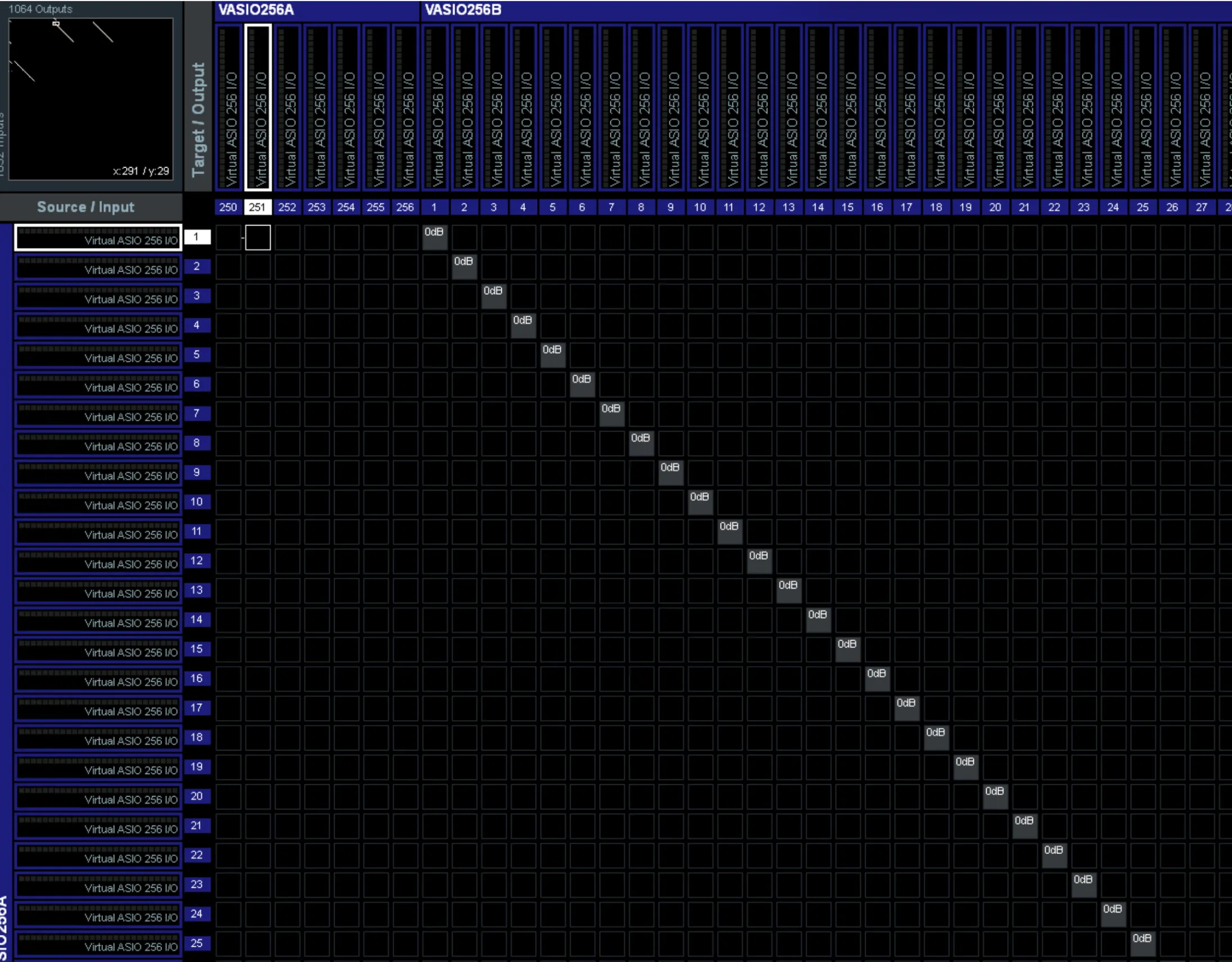

3. Bridge VASIO256A and VASIO256B over to VASIO512.

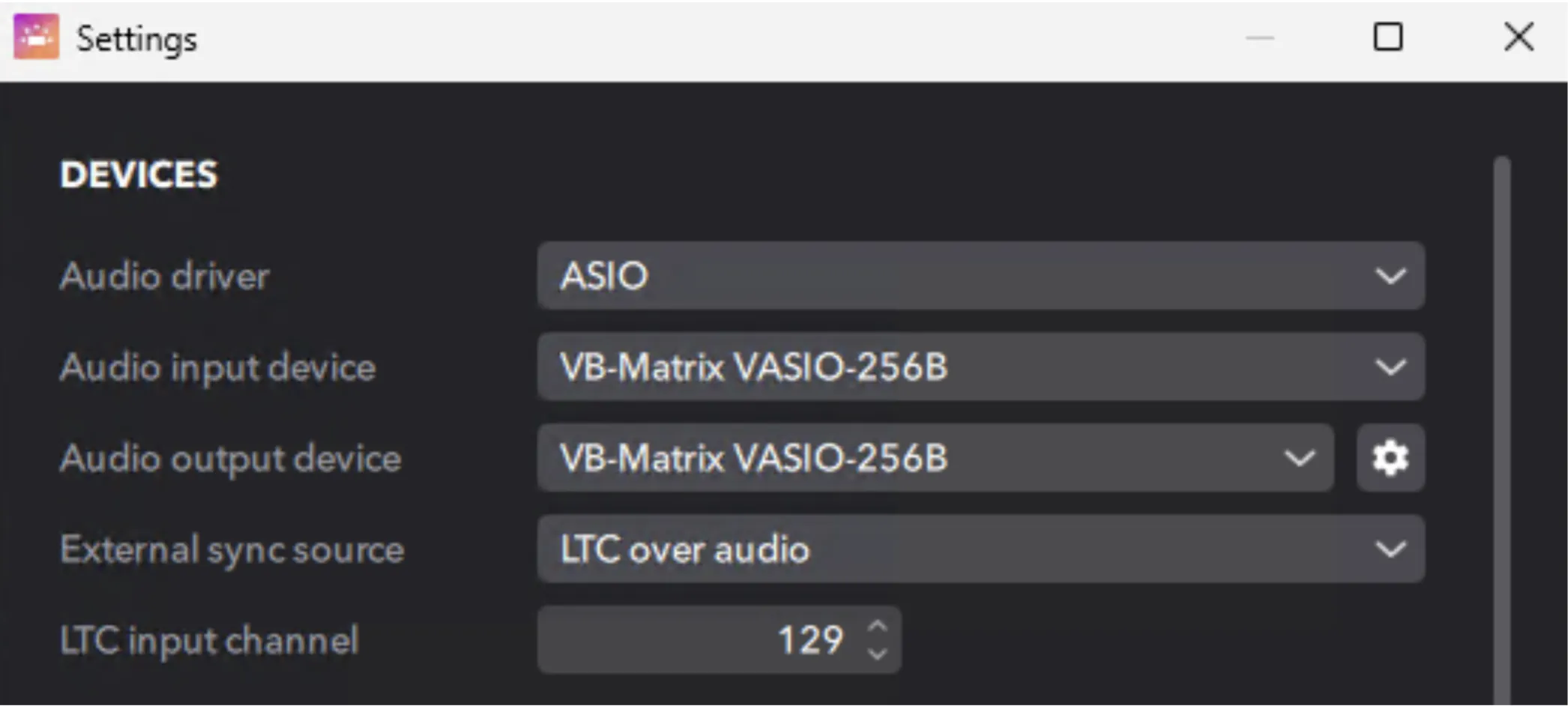

• If you are using a 256-channel VB-Matrix for your Renderer, remember to branch the Renderer output to VASIO512 so that Source-Connect 4 can receive the same 128-channel audio stream.

Step 4: Configuring Source-Connect 4 Facility for LTC

1. Open up Source-Connect 4 Facility and click on the “SYNC” tab.

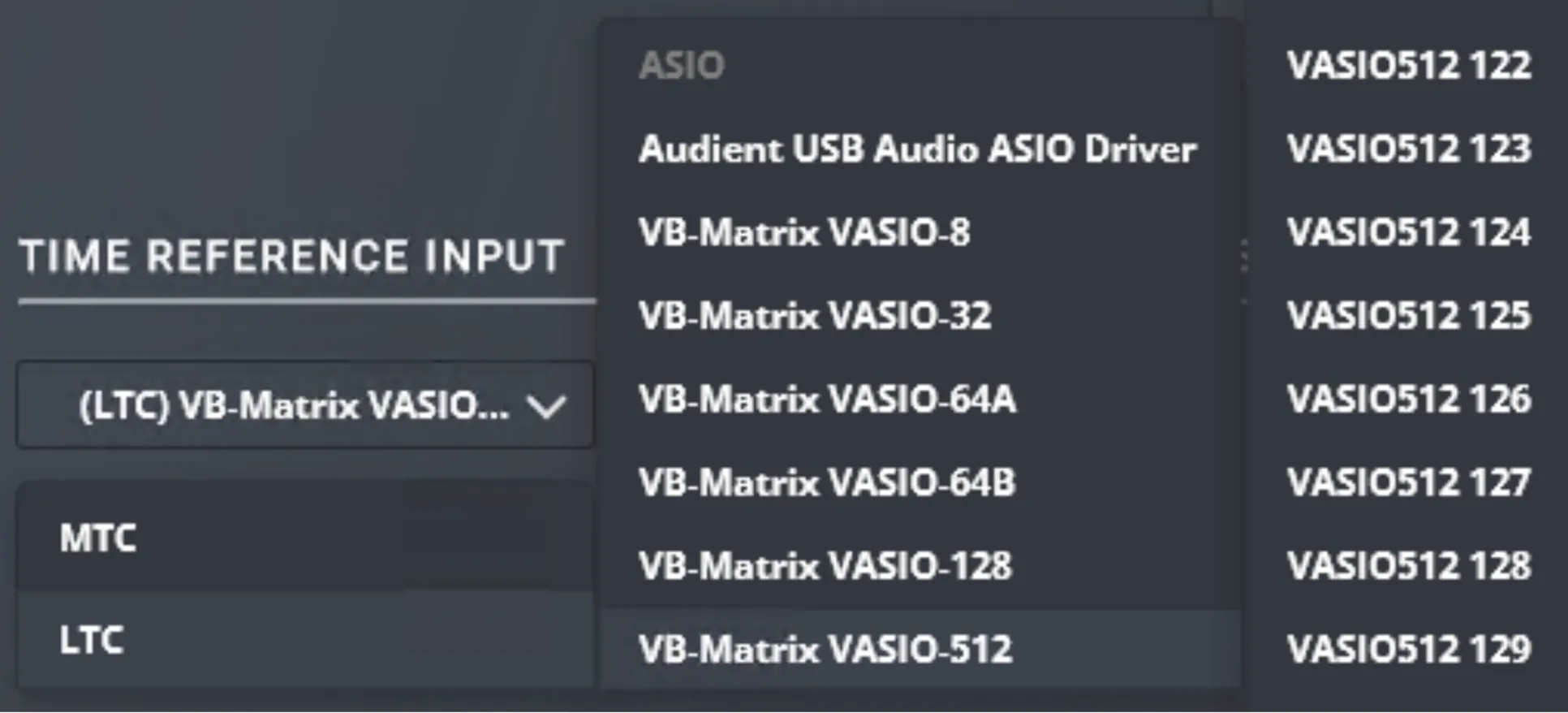

2. On the “TIME REFERENCE INPUT”, select LTC and, then, choose the channel that receives LTC audio (normally, channel 129).
3. Click the “SEND” button - you will see a “Waiting for timecode” message under the timecode number indicator.

Step 5: Sending LTC from Pro Tools to Source-Connect 4

This article contains detailed instructions to help you configure Pro Tools and Source-Connect 4 for LTC. The only difference for Windows is that you will need to use a dedicated channel.

1. In Pro Tools, create an audio track that carries your SMPTE clock.
2. Route this audio track to Renderer input 129 (the channel Source-Connect 4 reads).
3. Route the same track to VASIO512 channel 129.
4. In the Source-Connect 4 SYNC tab, select channel 129 for LTC input.
